Stamoclean CAT221

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Colorimetric

  • Characteristic

    Back wash filter system for sample preparation with filter elements from 50µm to 200µm depending on the order code suitable for inlet or outlet of a WWTP. For the inlet you need a grinding pump.

  • Size

    438 x 650 x 250 mm
    17.08 x 25.35 x 9.75 inch

  • Design

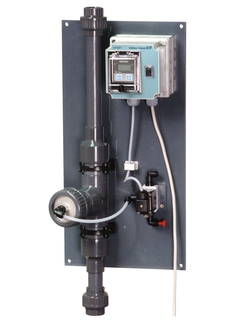

    Back wash filter system completely premounted on a mounting plate.

  • Process temperature

    5°C-40°C / 41°F-104°F

  • Ambient temperature

    0°C-50°C / 32°F-122°F

  • Process pressure

    0,2bar-4bar / 2.9psi-58psi

  • Sample flow rate

    1 to 2,5 m^3/h

  • Specials

    Back flushing with compressed air or industrial water

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 60 Hz or 230 V AC / 50 Hz or 24V DC

  • Consumables

    No filter elements necessary
