사양 정보
-
Measurement range
Trace: 0 ... 5 mg/l HOBr
Standard: 0 ... 20 mg/l HOBr
High: 0 ... 200 mg/l HOBr -
Process temperature
+0...55 °C (32 ... 130°F), non-freezing
-
Process pressure
Max. 1 bar (max. 14.5 psi)
적용 분야

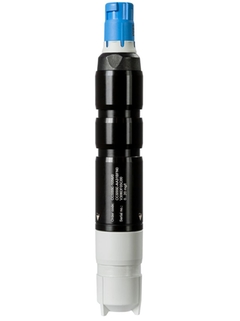

Memosens CCS55E is a high-precision sensor determining free bromine. Thereby, it helps ensuring disinfection in seawater applications like desalination plants, process or cooling water, swimming pools and fish farming industry. The low-maintenance sensor features fast response times guaranteeing efficient process control. Thanks to the latest Memosens 2.0 technology, it combines simple operation with maximum data integrity.
The Memosens CCS55E free bromine sensor measures reliably in:
Seawater applications such as desalination plants: to ensure reliable disinfection and support efficient dosing
Process and cooling water: where bromine disinfectants are used due to their reduced corrosion effect
Food industry: to accurately monitor water in fish farming
Pool water and therapeutic baths: where bromine is used due to the salinity of the water and as alternative to chlorine
장점
Safe disinfection in seawater applications: Since disinfection with chlorine forms bromine compounds when used in seawater, sole clorine monitoring would lead to measurement errors underestimating the disinfection effect.
High availability of the measuring point: pre-calibrating the sensor and swaping it with plug & play enables a fast sensor exchange. Plus, the poloarization time is faster with the new Memosens 2.0 technology.
Efficient process control: Quick response time (t90 < 20 s) provides an accurate process view and enables prompt reaction to changes. The sensor is not inactivated in bromine-free media - guaranteeing fast measurement after the addition of bromine.
Increased process safety: precise and long-term stable measurement ensures consistent process monitoring and allows for individually adapted disinfectant dosing.
Wide measurement range for different applications: From trace measurement up to free bromine concentrations of 200 mg/l.
Easy combination with other relevant parameters of liquid analysis such as pH and ORP by easily connecting the Liquiline multiparameter transmitter.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
-
기술 정보(TI)
TI Memosens CCS55E
Digital sensor with Memosens technology for determining free bromine
EN KO 23/10/2023언어:
영어
버전:
23/10/2023
파일 크기:
1.3 MB
파일 이름:
TI01769CEN_0123-00.pdf
-
-
-
사용 설명서(BA)
BA Memosens CCS55E
Memosens 기술이 적용된 유리 브롬 측정용 디지털 센서
EN KO 27/09/2023언어:
한국어
버전:
27/09/2023
파일 크기:
2.2 MB
파일 이름:
BA02315CKO_0123-00.pdf
-
-
-
PU (출판물)
Disinfection applications
Measuring ranges and suitable sensors
언어:
영어
버전:
16/06/2023
파일 크기:
603.1 KB
파일 이름:
PU01405CEN-disinfection-sensor-application.pdf
-
-
-
PU (출판물)
Desinfektionsanwendungen
Messbereiche und geeignete
Sensoren언어:
독일어
버전:
03/11/2023
파일 크기:
678.7 KB
파일 이름:
PU01405CDE_02.23_Desinfektionsanwendungen.pdf
-
-
-
역량 브로셔(CP)
La disinfezione ci riguarda da vicino
Acqua pulita e sicura per acquedotti, depuratori e industrie
언어:
이탈리아어
버전:
14/03/2024
파일 크기:
3.6 MB
파일 이름:
CP01548C16IT_0123.pdf
-
-
-
역량 브로셔(CP)
Desinfektion ist überall
Sauberes und sicheres Wasser für Wasserwerke, Kläranlagen und Industrie
언어:
독일어
버전:
07/09/2023
파일 크기:
1.6 MB
파일 이름:
CP01548CDE_Desinfektion.pdf
-
-
-
역량 브로셔(CP)
Disinfection is all around us
Clean and safe water for waterworks, wastewater treatment plants and ind
언어:
영어
버전:
22/06/2023
파일 크기:
1.5 MB
파일 이름:
CP01548CEN_Disinfection.pdf
-
-
-
혁신(IN)
eBrochure Memosens disinfection portfolio
eBrochure Memosens disinfection portfolio
언어:
독일어
버전:
26/02/2024
파일 크기:
9.2 MB
파일 이름:
Memosens disinfection portfolio CCS5xE_IN01315C07DE_eBrochure.pdf
-
-
-
혁신(IN)
eBrochure Memosens Disinfection portfolio
eBrochure Memosens Disinfection portfolio
언어:
영어
버전:
20/02/2024
파일 크기:
9.2 MB
파일 이름:
Memosens disinfection portfolio CCS5xE_IN01315C07EN_eBrochure.pdf
-
-
-
전해질
CCV05-55x (Germany)
Electrolyte for CCS55D
언어:
독일어
버전:
19/02/2024
파일 크기:
123.2 KB
파일 이름:
MSDS_CCV05-55x_(D).pdf
-
