사양 정보
-
Measurement range
-1500mV to +1500mV
-
Process temperature
0 to 80 °C (32 to 170 °F)
-
Process pressure
1 to 10 bar abs at 80 °C
(15 to 145 psi abs at 176 °F)
적용 분야

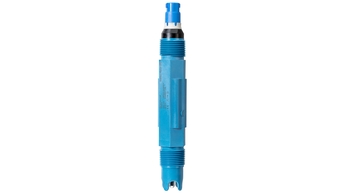

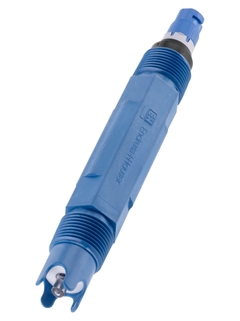

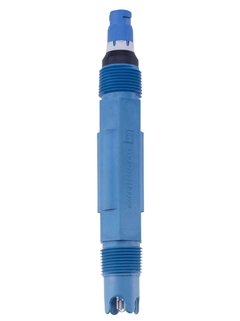

Orbipac CPF82D is the digital simple solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE diaphragm guarantees low maintenance while its integrated assembly saves space and time during flow or immersion installation. Orbipac CPF82D is not the latest Memosens generation. To get information on the new Memosens CPF82E sensor with extended functionality, click here.
Orbipac CPF82D is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:
Inlet and outlet
Neutralization
Flotation
Leaching
장점
Suitable for flow and immersion installation
Long-time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2- or CN- ions
Robust polymer housing protects against mechanical damage
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
동영상
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
Loading alternative products
성공 사례
관심이 있을 수 있는 게시물
8 설명서
-
-
기술 정보(TI)
Orbipac CPF81D/CPF82D and CPF81/CPF82
pH/ORP sensors, with digital Memosens technology or analog
For mining operations, industrial water and wastewater treatment -
-
-
사용 설명서(BA)
pH/ORP 센서 및 기준 하프 셀
Memosens 기술 적용 센서 및 아날로그 센서
EN KO 04/05/202031/12/201730/11/2015언어:
한국어
버전:
04/05/2020
파일 크기:
2 MB
파일 이름:
BA01572CKO_0320.pdf
-
-
-
EU 선언
Product family: CeraGel, CeraLiquid, Ceramax, ConduMax H, ConduMax W, InduMax H, InduMax P, Liquiline, Memosens, Messkabel, Orbi Pac, OrbiPore, OrbiSint, OxyMax H, OxyMax W, TopHit
Product root: CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS54D-, CLS82D-,
CML18-, COS21D-, COS22D-, COS51D-, COS81D-, CPF82D-, CPL51E-
,
CPS11D-, CPS12D-, CPS16D-, CPS171D-, CPS31D-, CPS341D-, CPS41D-,
CPS42D-, CPS441D-, CPS471D-, CPS47D-, CPS491D-, CPS71D-,
CPS72D-,
CPS77D-, CPS91D-, CPS92D-, CPS96D-, CPS97D-, CYK10-, CYK20-
Declaration number: EC_00828_02.20EN KO 14/02/2022언어:
영어
버전:
14/02/2022
파일 크기:
281.9 KB
파일 이름:
EC_00828_03.22_D-Sensoren CML18 EMV_RoHS.pdf
-
-
-
EU 선언
Product family: Messkabel, OrbiPac
Product root: CPF81D-, CPF82D-, CYK10-, CYK20-
Declaration number: EC_00657_03.24EN KO 06/01/2023언어:
영어
버전:
06/01/2023
파일 크기:
63.9 KB
파일 이름:
EC_00657_03.23_CPF8xD_nonEx unterschrieben.pdf
-
-
-
UK 적합성 평가
Product family: OrbiPac
Product root: CPF81D-, CPF82D-
Declaration number: UK_00374_01.21언어:
영어
버전:
04/08/2021
파일 크기:
94.6 KB
파일 이름:
UK_00374_01.21 CPF8xD_nonEx.pdf
-
-
-
방폭
Product family: InduMax P, Liquiline M, Memosens
Product root: CLS12-, CLS13-, CLS15-, CLS15D-, CLS16-, CLS16D-,
CLS21-, CLS21D-, CLS50-, CLS50D-, CLS82D-, CM42-, COS21D-, COS22D-,
COS51D-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPS11-, CPS11D-, CPS12-,
CPS12D-, CPS13-, CPS16D-, CPS171D-, CPS41-, CPS41D-, CPS42-, CPS42D-,
CPS441-, CPS441D-, CPS471-, CPS471D-, CPS491-, CPS491D-, CPS64-, CPS71-,
CPS71D-, CPS72-, CPS72D-, CPS76D-, CPS91-, CPS91D-, CPS92-, CPS92D-,
CPS96D-, CTS1-, CYK10-, CYP01D-, CYP02D-, OPS171D-
Region: USA
Approval agency: FM언어:
영어
버전:
30/11/2020
파일 크기:
523.6 KB
파일 이름:
FM16US0145XSupp15.pdf
-
-
-
방폭
Product family: CeraGel, CeraLiquid, ConduMax H, ConduMax W, InduMax P, Memosens, Messkabel, OEM, OrbiPac, OrbiPore, OrbiSint, OxyMa x H, OxyMax W, TopHit
Product root: CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS82D-, COS21D-, COS22D-, COS51D-, COS81D-, CPF81D-, CPF82D-, CPS11D-, CPS12D-, C
PS16D-, CPS171D-, CPS41D-, CPS42D-, CPS441D-, CPS471D-, CPS491D-, CPS71D-, CPS72D-, CPS76D-, CPS91D-, CPS92D-, CPS96D-, CYK10-, CYK2
0-, OCLS82D-, OCOS81D-, OPS91D-
Region: Canada
Approval agency: CSA
Protection: IS Cl. I Div. 1언어:
영어
버전:
30/08/2023
파일 크기:
263.6 KB
파일 이름:
S2_CoFC_80169522_EN.pdf
-
-
-
입찰 텍스트
Orbipac CPF82 D
Digitale Redox-Messelektrode mit kontaktloser, digitaler
Signalübertragung,
Memosenstechnologie (Speicherung Sensorkenndaten im Elektrodenkopf),
ausgeführt
als Kombi-Elektrode mit integriertem Temperaturfühler und
Teflondiaphragma,
eingebaut in PP-Adapter언어:
독일어
버전:
30/11/2021
파일 크기:
14.7 KB
파일 이름:
TTCPF82DDE.docx
-
