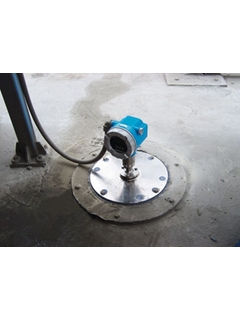

Micropilot M FMR250

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Level radar solid

  • Characteristic / Application

    Non-contact level measurement especially in powdery to granular bulk solids. Level measurement in tall silos with extremely dusty bulk solids e.g. cement, raw meal or animal feed. Applications with highly abrasive bulk solids e.g. ferrite / clinker

  • Specialities

    Air purge connection

  • Supply / Communication

    2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus)

  • Frequency

    K-Band (~ 26 GHz )

  • Antenna

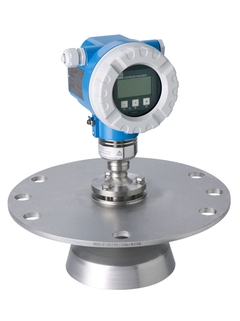

    Parabolic DN200/8", DN250/10"

    Horn DN80/3", DN100/4"

  • Accuracy

    +/- 15mm (or 0.04% of range, whatever is larger)

  • Ambient temperature

    -40 °C...+80 °C
    (-40 °F...+176 °F)

  • Process temperature

    -40 °C...+200 °C
    (-40 °F...+392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...16bar
    (Vaccum...232psi)

  • Main wetted parts

    PEEK, 1.4435, 1.4404, 316L

  • Process connection

    Thread:

    R1 1/2", NPT1 1/2

    Flange:

    DN80, DN 100

    ASME 3", 4"

    JIS 80A, 100A

    UNI DN100/4"...DN250/10"

  • Blocking distance

    Antenna length + 400mm (15.75")

  • Max. measurement distance

    70 m (230 ft)

  • Communication

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX, FM, CSA, NEPSI

    SIL

  • Options

    Separate display
    Antenna extension 250 mm/ 10" or 450 mm/18"
    Top Target Positioner (+/-15°)

  • Application limits

    Dk < 1.6

    Reduction of the max. possible measuring range through:

    Media with poor reflection properties

    Angle of repose

    Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling

    Build-up, above all of moist products

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification

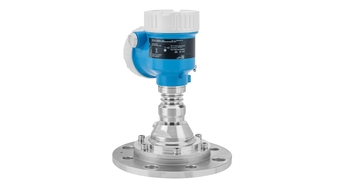

  • 신제품
