Microwave barrier receiver

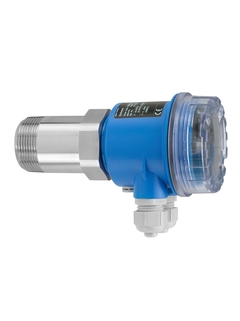

Soliwave FDR56

Soliwave FDR56 ©Endress+Hauser

Receiver for non-contact point level detection in bulk solids

The Soliwave FDR56 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR56 emitter.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>


개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Highly reliable measurement due to flush-mounted installation and possible non-contact installation as well as indication of the signal strength on the receiver

    • Mechanical robust solution ensures cost savings over the whole life cycle of the product: No...

  • 적용 분야

    Typical bulk solids are: Wood chips, wood dust or flour; plaster, cement, ash; paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.

    • Process connections: Threads

    • Ambient temperature: -40 to +70°C (-40 to +158°F)

    • Measuring...

특징 및 사양



  • 측정 원리

    Microwave barrier

  • Characteristic / Application


    Non-contact point level detection and flow monitoring

    Detecting, counting and positioning of objects

    Monitoring of material transfer points

    Detection and analysis of deposits and contamination


    Non-contact installation (transmission window) or front-flush installation (contact)

  • Specialities

    Measuement range: max. 100 m

  • Supply / Communication

    85 ... 253 VAC

    20 ... 60 VDC/ 20 ... 30 VAC

  • Ambient temperature

    -40 °C...+70 °C


  • Process temperature

    Non-contact installation: any

    Within installation:

    -40 °C...+70 °C (-40 °F...+158 °F)

    With HT-Adapter:

    up to +450 °C (+842 °F)

  • Process pressure absolute / max. overpressure limit

    Non-contact installation: any

    Within installation:

    0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.

    With HD-Adapter:

    up to +21 bar (+305 psi) abs.

  • Min. density of medium

    Solid weight: > 10 g/l

  • Main wetted parts

    Non-contact installation:
    no wetted parts

    Within installation:

    316Ti or Aluminium;

    PTFE or Ceramic

  • Process connection

    1-1/2" R, 1-1/2" G, 1-1/2" NPT

  • Process connection hygienic

    Non-contact installation

  • Communication

    Relays SPDT


    4 ... 20 mA

  • Certificates / Approvals


  • Design approvals


  • Options

    Sight glass

    High temperature adapter

    High pressure adapter

    Installation bracket

    FAR50, FAR51, FAR52, FAR53, FAR54, FAR55

  • Components

    Transmitter: FQR56

  • Application limits

    Solid weight: < 10 g/l
