Omnigrad TA540
Protection tube for temperature sensors

Omnigrad TA540

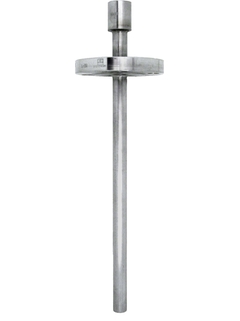

Protection tube for temperature sensors ©Endress+Hauser

Designed for use with resistance or thermocouple thermometers in heavy duty applications.

This device is a metallic protection tube with threaded or flanged welded process connection. Thermometer connection is a NPT female thread. A wide range of flange sizes according to common standards and materials for this device is available. Ideally, this leads to a wide range of flexible installations in heavy duty applications.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • The stem shape can be straight or stepped for fast response time

    • A wide choice of pipe sizes, materials and process connections is available

    • TA540 is an industry standard protection tube manufactured from pipe

    • Extension, immersion length and total length...

  • 적용 분야

    TA540 is designed for use with resistance and thermocouple thermometers in heavy duty applications.

특징 및 사양

뒤로

Details

  • 측정 원리

    Fabricated Thermowell

  • Characteristic / Application

    metric style

    various process connections

    round extension

  • Head connection

    internal thread:

    1/2" NPT

    G1/2"

    M20x1,5

  • Maximum standard immersion length

    4.000 mm (157,48")

  • Process connection

    thread:

    1/2" NPT

    3/4" NPT

    1" NPT

    M20x1,5

    flange:

    DN25 PN16 B1

    DN25 PN40 B1

    DN40 PN40 B1

    DN50 PN40 B1

    ASME 1" 150 RF

    ASME 1" 300 RF

    ASME 1" 600 RF

    ASME 1 1/2" 150 RF

    ASME 1 1/2" 300 RF

    ASME 1 1/2" 600 RF

    ASME 1 1/2" 600 RTJ

    ASME 1 1/2" 600 RTJ

    ASME 2" 300 RF

    ASME 2" 600 RF

    ASME 2" 300 RTJ

    ASME 2" 600 RTJ

  • Thermowell root diameter

    1/4" SCH40

    1/2" SCH40

    1/2" SCH80

    3/4" SCH40

  • Medium contact material

    1.4401 (316)

    1.4749 (~446)

  • Wetted part finishing (Ra)

    < 1.6 μm (63.00 μin)

  • Tip shape

    straight

    reduced

  • Temperature range

    -200...1.100 °C (-328...2.012 °F)

  • Max. process pressure (static)

    150 bar (2176 psi)

  • Max. process pressure at 400 °C

    depends on process connection
