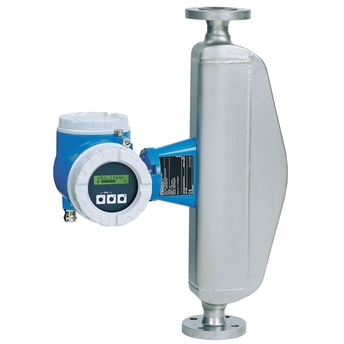

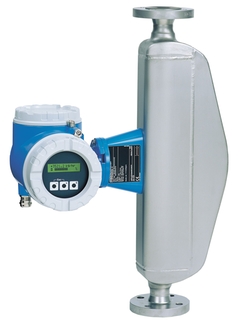

Promass 80H

Coriolis

The chemically resistant single‐tube flowmeter with a compact or remote transmitter. Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2").

Cost‐effective – dedicated design for standard applications. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.

DN 8 to 50 (³⁄₈ to 2")

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Mass flow (liquid): ±0.15 %
Volume flow (liquid): ±0.15 %
Mass flow (gas, Tantalum only): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 70 000 kg/h (0 to 2570 lb/min)

PN 40, Class 300, 20K

Tantalum: –50 to +150 °C (–58 to +302 °F)
Ziconium: –50 to +200 °C (–58 to +392 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

2‐line backlit display with push buttons
Configuration via local display and operating tools possible

3 outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)

Status input

HART
PROFIBUS PA

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL
PED, CRN

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

PED, CRN

3.1 material

Coriolis

Balanced single-tube system, "Fit-and-Forget" installation
Design:
Easy to clean, hygienic, careful handling of the medium
- chemically resistant material

-20...+65°C
(-4...+140°F)

-50...+200°C
(-58...+392°F)

PN 40
Cl 150...300
JIS 10...20K

Zirconium 702/R60702

4...20 mA
Pulse/Frequency
Status

ATEX
FM
CSA

Coriolis

The chemically resistant single‐tube flowmeter with a compact or remote transmitter. Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2").

Cost‐effective – dedicated design for standard applications. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.

DN 8 to 50 (³⁄₈ to 2")

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Mass flow (liquid): ±0.15 %
Volume flow (liquid): ±0.15 %
Mass flow (gas, Tantalum only): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 70 000 kg/h (0 to 2570 lb/min)

PN 40, Class 300, 20K

Tantalum: –50 to +150 °C (–58 to +302 °F)
Ziconium: –50 to +200 °C (–58 to +392 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

2‐line backlit display with push buttons
Configuration via local display and operating tools possible

3 outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)

Status input

HART
PROFIBUS PA

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

PED, CRN

3.1 material
