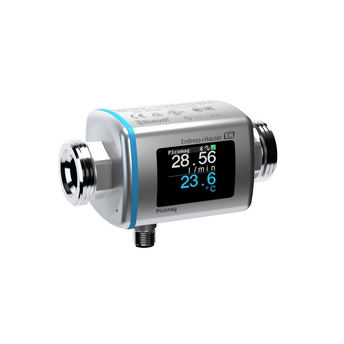

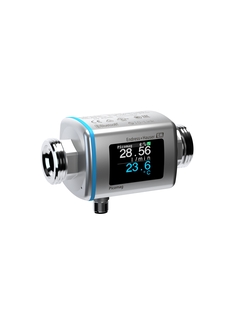

Picomag
Electromagnetic flowmeter

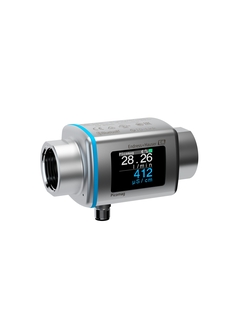

The Picomag flowmeter received the Red Dot Design Award in the product design category. ©Endress+Hauser

The Picomag flowmeter received the Red Dot Design Award in the product design category.

Picomag – The plug-and-play flowmeter for utilities

Picomag – Initial commissioning with the SmartBlue App

The Electromagnetic Flow Measuring Principle

Smart magmeter for utilities – intuitive · convenient · multivariable

Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.

  • 장점

    • Quick offline configuration check – unique, comfortable knock functionality

    • Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection

    • Simple device access through its whole lifecycle – no manual needed due to...

  • 적용 분야

    • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

    • Ideal for measurement of conductive liquids in many utility applications across all industries.

    Device properties

    • Wireless remote access via...

특징 및 사양

뒤로

Details

  • 측정 원리

    Electromagnetic

  • Product headline

    Smart magmeter for utilities – intuitive · convenient · multivariable. Quick offline configuration check – unique, comfortable knock functionality. Ideal for measurement of conductive liquids in many utility applications across all industries.

  • Sensor features

    Fewer measuring points necessary – simultaneous flow and temperature measurement. Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing. High shock and vibration resistance. Degree of protection: IP65/67.

  • Transmitter features

    Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection. Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue App. Instant local process monitoring – large, user-friendly display of all measurement activities. Flexible integration into all fieldbus systems – plug-and-play device with IO-Link. Wireless remote access via Bluetooth SmartBlue App. IO-Link and various I/Os for all line-sizes.

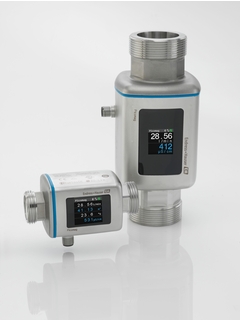

  • Nominal diameter range

    DN15 to 50 (1/2 to 2")

  • Wetted materials

    PEEK, Stainless Steel, FKM

    Electrodes: 1.4404/316L

  • Measured variables

    Volume flow, Temperature

  • Max. measurement error

    Volume flow: +/-2% o.r. +/- 0.5% o.f.s

  • Measuring range

    up to 750 l/min

  • Max. process pressure

    16 bar

  • Medium temperature range

    -10 to 70 °C

  • Ambient temperature range

    -10 to 60 °C

  • Sensor housing material

    1.4404/316L, Polycarbonate

  • Transmitter housing material

    1.4404/316L, Polycarbonate

  • Degree of protection

    IP 65/67

  • Display/Operation

    Integrated display, operation via SmartBlue app

  • Outputs

    Current (4 to 20mA)

    Pulse

    Switch

    Voltage (2 to 10V)

  • Inputs

    Status

  • Digital communication

    IO-Link

  • Power supply

    18 to 30V DC

  • Product safety

    cULus listing

  • Hygienic approvals and certificates

    Drinking water approvals in preperation
