사양 정보
-
Max. measurement error
±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
±0.5 % o.r. ± 1 mm/s (0.04 in/s)
±5 % o.r. -
Measuring range
0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
-
Medium temperature range
Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
Seal material Viton: 0 to +150 °C (+32 to +302 °F) -
Max. process pressure
PN 16
-
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
Platinum
적용 분야

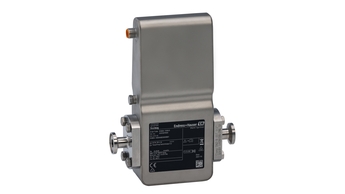

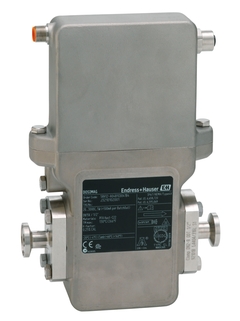

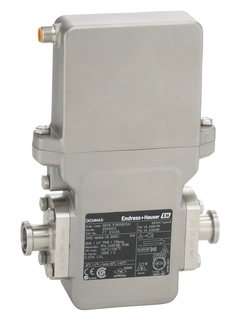

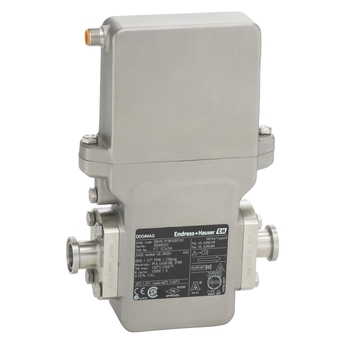

Dosimag은 전도성 액체의 충진 및 주입 어플리케이션을 위해 설계된 계기로, 체적을 직접 측정합니다. 공간이 중요한 어플리케이션을 위해 설계된 Dosimag은 시스템 통합업체, 스키드 빌더 및 장비 제조업체에 적합한 솔루션입니다.
압력, 밀도, 온도 및 점성에 거의 영향을 받지 않는 양방향 측정 원리
까다로운 주입 및 충진 어플리케이션용
계기 특징
접액부 재질 CIP, SIP 세척 가능
직경: DN 4 ~ 25 (1/8 ~ 1")
FDA 규정 준수
펄스/주파수/스위치 출력, Modbus RS485
상거래 승인(MID, NTEP)
손쉽게 세척 가능한 트랜스미터
장점
뛰어난 프로세스 안전성 – 가장 짧은 충진 시간에서 우수한 측정 정확도와 반복성 보장
에너지 절약형 유량 측정 – 교차부 수축으로 압력 손실이 없음
유지보수 불필요 – 구동부가 없음
시간 절약형 다용도 배선 – 플러그 커넥터
산업 최적화 – 초소형 설계
위생 요건 충족 – 스테인리스강 하우징
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Dosimag Technical Information
영어 버전 - 02/2017
Electromagnetic flowmeter Flowmeter with maximum repeatability and ultra-compact sensor with hygienic design
EN KO 01/02/201701/09/201513/08/201401/11/2005언어:
영어
버전:
01/02/2017
파일 크기:
1.6 MB
파일 이름:
TI00066DEN_1517.pdf
-
-
-
설치 설명서(EA)
Adapter RSE8, RSE5, RSE4 Installation Instructions
영어 버전 - 10/2018
Proline Dosimass, Dosimag
EN KO 01/10/201814/04/2014언어:
영어
버전:
01/10/2018
파일 크기:
297 KB
파일 이름:
EA01104DA2_0218.pdf
-
-
-
기술 정보(TI)
Dosimag Technical Information
Electromagnetic flowmeter
Flowmeter with maximum repeatability and ultra-compact sensor with
hygienic designEN KO 01/02/201701/09/201513/08/201401/11/2005언어:
영어
버전:
01/02/2017
파일 크기:
1.6 MB
파일 이름:
TI00066DEN_1517.pdf
-
-
-
사용 설명서(BA)
Dosimag Operating Instructions
Electromagnetic flowmeter
EN KO 01/02/201701/09/201513/08/201415/05/2006언어:
영어
버전:
01/02/2017
파일 크기:
1.4 MB
파일 이름:
BA00098DEN_1517.pdf
-
-
-
사용 설명서(BA)
Dosimag Modbus RS485 Operating Instructions
Electromagnetic flowmeter
EN KO 01/02/201701/09/201513/08/2014언어:
영어
버전:
01/02/2017
파일 크기:
1.5 MB
파일 이름:
BA01321DEN_0317.pdf
-
-
-
계기 파라미터(GP)
Dosimag Description of Device Parameters
Electromagnetic flowmeter
EN KO 01/09/2015언어:
영어
버전:
01/09/2015
파일 크기:
526.3 KB
파일 이름:
GP01049DEN_0115.pdf
-
-
-
계기 파라미터(GP)
Dosimag Modbus RS485 Description of Device Parameters
Electromagnetic flowmeter
EN KO 01/09/2015언어:
영어
버전:
01/09/2015
파일 크기:
701.6 KB
파일 이름:
GP01048DEN_0115.pdf
-
-
-
설치 설명서(EA)
Adapter RSE8, RSE5, RSE4 Installation Instructions
Proline Dosimass, Dosimag
EN KO 01/10/201814/04/2014언어:
영어
버전:
01/10/2018
파일 크기:
297 KB
파일 이름:
EA01104DA2_0218.pdf
-
-
-
설치 설명서(EA)
Exchanging electronics module and gasket Installation Instructions
Dosimag 5BH
EN KO 01/04/201901/01/2006언어:
영어
버전:
01/04/2019
파일 크기:
275 KB
파일 이름:
EA00041DA2_0219.pdf
-
-
-
Ex 안전 지침서(XA)
Dosimag ATEX: II3G Ex nA IIC T5 to T1 Gc IECEx: Zone 2 Ex nA IIC T5 to T1 Gc Safety Instructions
Documentation for hazardous areas
EN KO 01/02/201702/03/201601/09/201514/08/2014언어:
영어
버전:
01/02/2017
파일 크기:
321.4 KB
파일 이름:
XA01332DEN_0417.pdf
-
-
-
특별 문서(SD)
Dosimag Custody transfer Special Documentation
Electromagnetic flowmeter
EN KO 14/12/2015언어:
영어
버전:
14/12/2015
파일 크기:
171.3 KB
파일 이름:
SD01514DEN_0115.pdf
-
