Magphant
Electromagnetic flowmeter

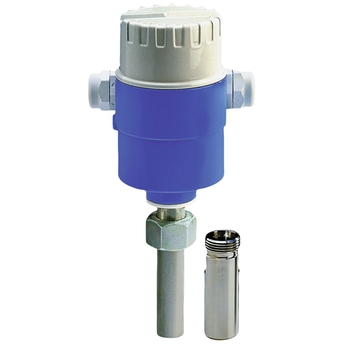

Product picture of: Magphant - Electromagnetic flowmeter ©Endress+Hauser

The Electromagnetic Flow Measuring Principle

  • Product picture of: Magphant - Electromagnetic flowmeter

The cost-effective limit switch for reliable and repeatable flow monitoring

The cost-effective, compact limit switch Magphant is an ideal flowmeter for water applications in Utilities. Its reliable measurement with high repeatability allows for univesal and easy use and supports safe process- and plant operation.

  • 장점

    • High plant availability – reliable flow information

    • Energy-saving flow measurement – no pressure loss due to cross-section constriction

    • Maintenance-free – no moving parts

    • Process safety – device self-monitoring and reliable monitoring even with empty piping

    • Product safety – integrated testing to check correct functioning of the electronics

    • ...

  • 적용 분야

    • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

    • Universally usable for all water applications in Utilities.

    Device properties

    • Compact, space-saving design

    • Nominal diameter: DN 15 to 2000 (1/...

특징 및 사양

뒤로

Details

  • 측정 원리

    Electromagnetic

  • Product headline

    Cost-effective limit switch for reliable and repeatable flow monitoring. Universally usable for all water applications in Utilities.

  • Sensor features

    High plant availability – reliable flow information. Energy-saving flow measurement – no pressure loss due to cross-section constriction. Maintenance-free – no moving parts. Compact, space-saving design. Nominal diameter: DN 15 to 2000 (½ to 80").

  • Transmitter features

    Process safety – device self-monitoring and reliable monitoring even with empty piping. Product safety – integrated testing to check correct functioning of the electronics. Easy operation – potentiometer setting of full-scale value. Switch point setting via rotary switch. Current output and relay output.

  • Nominal diameter range

    DN15 to DN2000
    1/2" to 80"

  • Wetted materials

    1.4435/316L

  • Measured variables

    Volume flow

  • Max. measurement error

    2%

  • Measuring range

    0 to 56'550 m3/h

  • Max. process pressure

    0 to 16 bar abs

  • Medium temperature range

    -20 to +120°C
    (-4 to +248°F)

  • Ambient temperature range

    -20...60 °C (-4 to 140°F)

  • Sensor housing material

    Die-cast aluminium, epoxy powder coated

  • Degree of protection

    IP 66 / NEMA 4X / Type 4X

  • Display/Operation

    Test function

  • Outputs

    4 to 20 mA
    Relay

  • Inputs

    None

  • Power supply

    24 V DC (20...30 V DC)

  • Hazardous area approvals

    FM
    CSA

  • Product safety

    CE, EAC

문서 / 매뉴얼 / 소프트웨어

  • MAGPHANT Technical InformationRMAT

    Electromagnetic Flow Monitor, for flow monitoring conductive fluids.

    Technical Information (TI)
  • Magphant HART Operating Instructions

    Electromagnetic Flow Monitor, for flow monitoring conductive fluids.

    Operating Instruction (BA)
  • Magphant ATEX II3G Ex documentation

    Ex-Dokumentation zur Betriebsanleitung BA00025D. Ex documentation for the operating instruction BA00025D. Documentation Ex relative à la mise en service BA00025D.

    Ex Safety Instructions (XA)
  • Flow measurement in utilities - for the US Market

    Energy management in your hands - customized solutions for compressed air, gas, steam and water

    Competence Brochure (CP)
    12/10
    영어
  • Magphant

    Product Code: DTI200- Declaration Number: ID11_1

    EU Declaration
    독일어 , 영어 , fr
  • Dosimag, Dosimass, Magphant

    Product Code: DTI200-, DTT31-, DTT35-, DTT35L- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TC RU D-CH.AZ01.B.01169

    Miscellaneous
    러시아어
