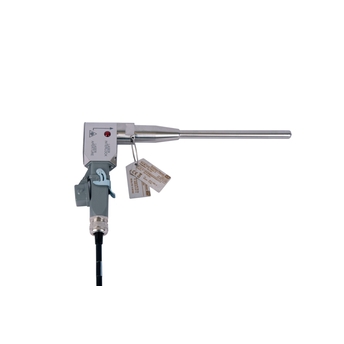

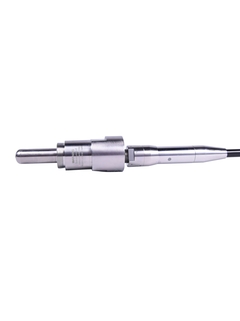

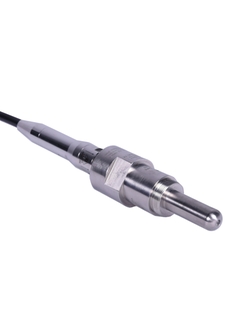

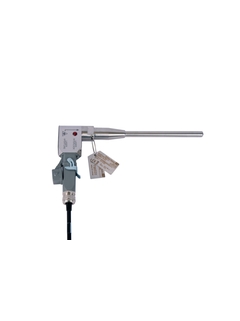

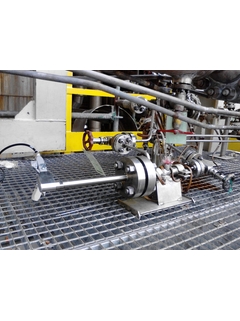

Raman Rxn-40 프로브

Raman spectroscopy

532 nm, 785 nm, 1000 nm

Probe spectral coverage is limited by the coverage of the analyzer being used.

Nonexplosive environments:
-30 to 70 °C / -22 to 158 °F
Explosive environments:
T3/T4: –20 to 70 °C / –4 to 158 °F
T6: –20 to 65 °C / –4 to 149 °F
Limited to normal ambient temperature
IEC 60079-0 for Korea

< 499

Temperature, Rxn-40 mini configuration:
-30 to 120 °C / -22 to 248 °F (316L stainless steel)
-30 to 150 °C / -22 to 302 °F (C276 alloy)
-30 to 150 °C / -22 to 302 °F (Grade 2 Titanium)
Temperature ramp:
≤ 30 °C/min
≤ 54 °F/min
Temperature, Rxn-40:
-30 to 120 °C / -22 to 248 °F (316L stainless steel)
-30 to 280 °C / -22 to 536 °F (C276 alloy)
-30 to 315 °C / -22 to 599 °F (Grade 2 Titanium)
Temperature ramp:
≤ 30 °C/min
≤ 54 °F/min

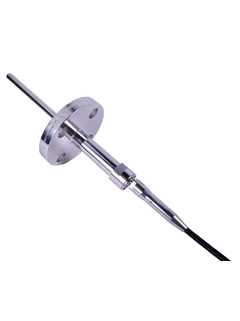

Flange: ASME B16.5 and DIN EN1092 Type B flanges available upon request
Relative humidity: up to 95%, non-condensing

Min pressure: Full vacuum (0 bara) but not ultrahigh vacuum (UHV) where outgassing maybe a concern
Max pressure, Rxn-40 mini configuration:
157.1 barg/ 2279 psig (316L stainless steel)
199.3 barg/ 2890 psig (C276 alloy)
153.6 barg/ 2228 psig (Grade 2 titanium)
Max pressure, 1/2 inch Rxn-40:
142.4 barg/ 2066 psig (316L stainless steel)
158.1 barg/ 2293 psig (C276 alloy)
65.2 barg/ 946 psig (Grade 2 titanium)
Max pressure, 3/4 and 1 inch Rxn-40:
169.5 barg/ 2458 psig (316L stainless steel)
182.8 barg/ 2651 psig (C276 alloy)
72.2 barg/ 1047 psig (Grade 2 titanium)

Metal: C276 alloy, 316L stainless steel, or Grade 2 titanium
Window: High-purity sapphire

Cable sold separately

Rxn-40 mini configuration immersible length:
36 mm / 1.42 inch
Rxn-40: Maximum immersible length is dependent on material choice

12.7, 19.05, 25.4 mm
0.5, 0.75, 1 inch

ATEX, CSA, IECEx, UKCA, JPEx
