Microwave barrier receiver
Soliwave FDR50

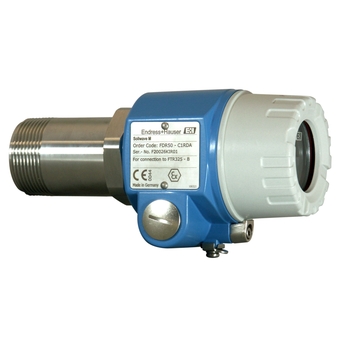

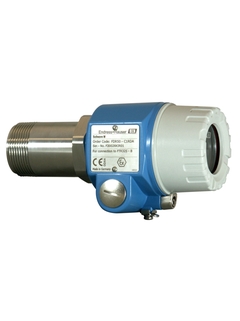

Soliwave FDR50 aluminum hosuing ©Endress+Hauser

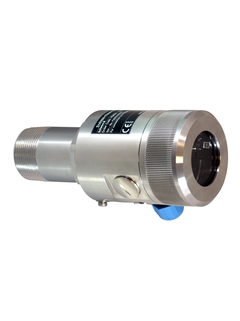

Soliwave FDR50 stainless steel hosuing ©Endress+Hauser

Receiver for non-contact point level detection in bulk solids

The Soliwave FDR50 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR50 emitter.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Highly reliable measurement due to adjustable sensitivity and indication of the signal strength on the receiver

    • Mechanical robust solution ensures cost savings over the whole life cycle of the product: No wear and tear, long serviceable life,...

  • 적용 분야

    Typical bulk solids are: Wood chips, wood dust or flour, plaster, cement, ash, paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.

    • Process connections: Threads

    • Ambient temperature: -20 to +70°C (-4 to +158°F)

    • Measuring...

특징 및 사양

뒤로

Details

  • 측정 원리

    Microwave barrier

  • Characteristic / Application

    Microwave receiver

  • Ambient temperature

    -20 °C ... 70 °C

    (-4 °F ... 158 °F)

  • Process temperature

    Waves emitted from outside (non-contact): any
    Waves emitted within installation (contact):

    -20°C...70°C
    (-4°F...158°F)

  • Process pressure absolute / max. overpressure limit

    Waves emitted from outside (contactless): any
    Waves emitted within installation (contact):
    0.8 bar abs ... 4,8 bar abs (12 psi ... 70 psi)

  • Min. density of medium

    Solid weight: >10 g/l

  • Main wetted parts

    Within installation: Aluminium, PTFE
    Or: non-contact

  • Process connection

    1-1/2" G + NPT
    With wave emission from outside / mounting from outside, metal container must not be made of metal

  • Process connection hygienic

    With waves emitted from outside (non-contact)

  • Communication

    Transmitter: Relays, DPDT

  • Certificates / Approvals

    ATEX, IEC Ex

  • Options

    Flange

  • Components

    Emiter: FQR50
    Transmitter: FTR325

  • Successor

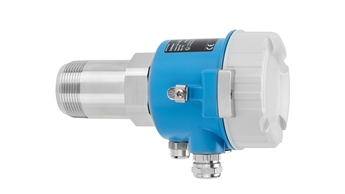

    Soliwave FDR57

  • Application limits

    With waves emitted from outside (non-contact)
    Solid weight: <10g/l
