사양 정보
-
Input
Tankvision Tank Scanner NXA820
-
Output
Serial port for PTB printer
적용 분야

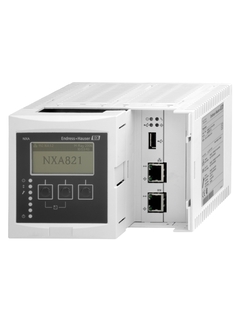

The Data Concentrator NXA821 summarizes data from various Tank Scanners NXA820 as one part of Tankvision. Tankvision is a tank inventory system which is operated by a standard web browser and does not require proprietary software or licensing costs. Tankvision is based on a distributed architecture on a local area network (LAN). Due to its modular structure it is ideally suited for small tank farms with only a couple of tanks, but also for large refineries with hundreds of tanks.
Summarizes data from various Tank Scanners NXA820. Suited for small tank farms with only a couple of tanks, but also for large refineries with hundreds of tanks.
Ambient temperature: -40 to +60°C (-40 to +140°F)
Approved for custody transfer applications according to NMi and PTB
장점
A robust industrial operating system with embedded software ensures high stability and availability
Approved for custody transfer applications according to NMi and PTB
Modular design; easily adjustable to any application; can be upgraded as required
Configuration, commissioning and operation via web browser; no proprietary software required
Access for up to 10 users per Tankvision component from any connected PC - license free
Predefined or customized operator screens for typical operation of a tank farm
Common hardware platform for all components; no hard disc or fans - no wearout
Loading alternative products
기존 제품
-
-
기술 정보(TI)
Tankvision NXA820, NXA821, NXA822
Inventory Management System with completely integrated software for
operation via standard web browserEN KO 03/04/2008언어:
영어
버전:
03/04/2008
파일 크기:
2.7 MB
파일 이름:
TI419FEN_05.08.pdf
-
-
-
사용 설명서(BA)
Tankvision NXA820, NXA821, NXA822 Operating Instructions
Inventory Management System with completely integrated software for
operation via standard web browserEN KO 13/09/201026/05/2008언어:
영어
버전:
13/09/2010
파일 크기:
2.5 MB
파일 이름:
BA340FEN_1209.pdf
-
-
-
사용 설명서(BA)
Tankvision NXA820, NXA821, NXA822 Description of Instrument Functions
Inventory Management System with completely integrated software for
operation via standard web browserEN KO 13/09/201026/05/2008언어:
영어
버전:
13/09/2010
파일 크기:
6.5 MB
파일 이름:
BA339FEN_1209.pdf
-
-
-
설치 설명서(EA)
Terminal set Installation instruction
NXA820, NXA821, NXA822
EN KO 11/04/2012언어:
영어
버전:
11/04/2012
파일 크기:
229.2 KB
파일 이름:
EA0007FA2_0708.pdf
-
-
-
설치 설명서(EA)
Electronics basic version and PC boards Installation Instructions
Prosonic S FMU9x; Tankvision NXA20, NXA82x
EN KO 30/04/201731/03/2017언어:
영어
버전:
30/04/2017
파일 크기:
609.6 KB
파일 이름:
EA01205FA2_0217.pdf
-
