Radar measurement

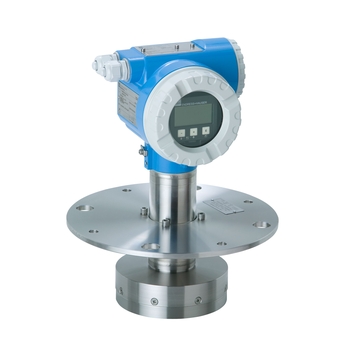

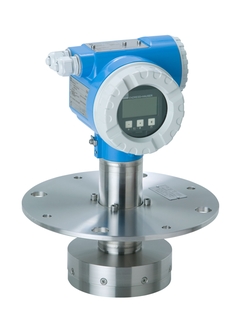

Micropilot FMR532

Time-of-Flight measuring principle

For high accurate non-contact level measurement in stilling well applications in custody transfer

The Micropilot FMR532 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR532 free space radar with planar antenna is specifically suited for stilling well applications. Micropilot FMR532 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

사이징
로그인 및 사양 구성 후의 가격

비교

빠른 선택

제안된 옵션 중에서 선택하십시오.

<%label%>
-- selected coding

-- selected label
<%label%>
더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

선택적 추가 항목

계속하려면 개별 사양 구성 을 사용하십시오.

또는

개별 구성

가능한 모든 옵션에서 선택을 계속하십시오.

장점
0.8mm accuracy (2σ value)
National approvals (NMi, PTB) for custody transfer
Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590
Easy on-site operation via menu-driven alphanumeric display
Easy...

자세히 보기
0.8mm accuracy (2σ value)
National approvals (NMi, PTB) for custody transfer
Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590
Easy on-site operation via menu-driven alphanumeric display
Easy commissioning, documentation and diagnostics via FDT/DTM technology (FieldCare)
Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply
Unique drip-off antenna design eliminates measurement error due to condensation build-up

간단히 보기

적용 분야

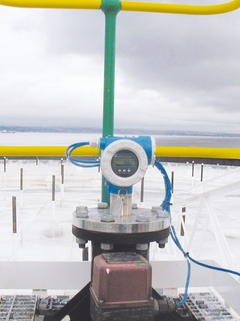

With planar antenna particularly suited for stilling well applications with ranges
up to 38m (124ft).

Process connection: Flange

Temperature: -40 to +150°C (-40 to +302°F)

Pressure: Vacuum to +25bar (Vacuum to +362psi)

Maximum measuring range: 38m (124ft)

Accuracy: Better than ±1mm

C-...

자세히 보기
With planar antenna particularly suited for stilling well applications with ranges
up to 38m (124ft).

Process connection: Flange

Temperature: -40 to +150°C (-40 to +302°F)

Pressure: Vacuum to +25bar (Vacuum to +362psi)

Maximum measuring range: 38m (124ft)

Accuracy: Better than ±1mm

C-band: 6GHz

International explosion protection and custody transfer certificates, overfill prevention WHG, SIL, marine approval

간단히 보기

특징 및 사양

뒤로

Details

측정 원리

Level radar
Characteristic / Application
Supply / Communication

4-wire (HART)
Frequency

C-band (~6 GHz)
Accuracy

+/- 1 mm, custody transfer
Ambient temperature

Standard:
-40 °C ... 80 °C
(-40 °F ... 176 °F)
For calibration to regulatory standards:
-25 °C ... 60 °C
(-13 °F ... 131 °F)
Process temperature

-40 °C ... 150 °C
(-40 °F ... 302 °F)
Process pressure absolute / max. overpressure limit

Vacuum ... 25 bar
(Vaccum ... 362 psi)
Main wetted parts

316L + PTFE
Process connection

DN150 ... DN300 / 6" ... 12"
Application
Max. measurement distance
Communication

4 ... 20 mA
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, NEPSI
Safety approvals

Overfill prevention WHG
Design approvals

EN 10204-3.1

NACE MR0175, MR0103
Marine approval

GL/ ABS
Application limits

자세히 보기
간단히 보기
