Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B

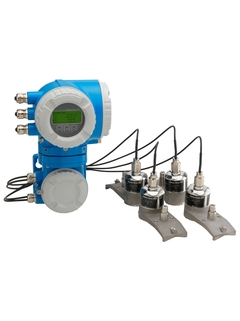

Proline Prosonic Flow P 500 ultrasonic clamp-on flowmeter

Reliable, flexible, zero maintenance – noninvasive flow measurement, consistently accurate, even under challenging conditions

9P5B

비교

Picture of the AMA Innovation Award 2025 for Proline Prosonic Flow P 500 — Award-winning high-temperature clamp-on sensor: Prosonic Flow P 500 has won the AMA Innovation Award 2025

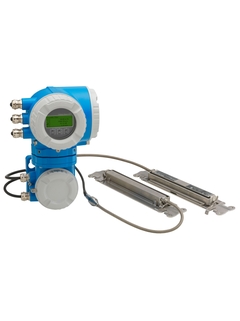

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B - DN 15 to 65 (½ to 2½") — Proline Prosonic Flow P 500 for pipes with line sizes DN 15 to 65 (½ to 2½")

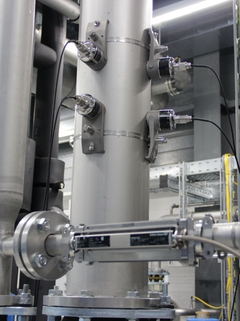

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 in limited space — When space is limited: Ultrasonic clamp-on flowmeter with FlowDC function for consistently high performance even at only 2 x DN inlet runs

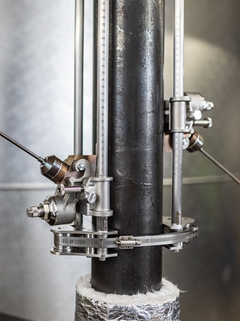

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B - with high temperature sensors — Flow measurement up to 550 °C (1022 °F) with Prosonic Flow P 500 high temperature sensors

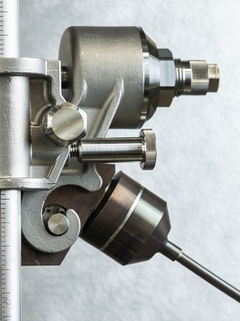

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 - High temperature ultrasonic sensor — High temperature ultrasonic sensor: robust materials and metal coupling foils for trouble-free and long-term operation

Ultrasonic clamp-on flowmeter Proline Prosonic Flow P 500 – noninvasive and easy to install – no process interruption – maintenance-free operation up to 550 °C

사양 정보

Max. measurement error

Volume flow:
±3% o.r. for DN 15
±2% o.r. for DN 25 to DN 200
±2% o.r. above DN 200
Measuring range

0 to 15 m/s (0 to 50 ft/s)
Medium temperature range

DN 15 to 65 (½to 2½"): –40 to +150°C (–40 +302 °F)
DN 50 to 4000 (2 to 160"): –40 to +170°C (–40 to +338 °F)
DN 50 to 600 (2" to 24"): 150°C to 550°C (+302 to +1022 °F)
Max. process pressure

N/A

모든 사양 보기

적용 분야

Prosonic Flow P 500 is the ultrasonic clamp-on flowmeter of choice for safe and maintenance-free measurement of conductive and non-conductive liquids, even in challenging applications. It measures flow noninvasively and bidirectionally, independent of pressure, density and conductivity, and without process interruption.

FlowDC makes mounting as flexible as never before. The specified accuracy is maintained at an inlet run of only 2 x DN, even in the case of disturbed flow profiles.

Special coupling pads make this ultrasonic clamp-on system maintenance-free during the entire product life cycle.

In addition, Prosonic Flow P 500 is available with:

high-temperature sensors for measurement up to 550 °C (1022 °F)
a Petroleum Application Package (PAP), calculating the standard volume for liquid hydrocarbons
Heartbeat Technology, providing continuous process transparency. This way, build-up can be detected before it affects operation

장점

Flexible mounting – FlowDC reduces inlet runs to a minimum
High safety standards – Prosonic Flow P 500 is developed according to IEC 61508 functional safety requirements and holds international approvals for hazardous area, Zone 1 and Class I, Division 1
Reliable measurement performance – proven sensors in combination with maintenance-free mounting system deliver long-term stable signals, also in high-temperature applications (≤550 °C/1022 °F)
User-friendly operation – the web server offers full remote access, while the device’s touch display offers convenient on-site interaction
Transparent process insights – Heartbeat Technology with its integrated diagnostics, verification and monitoring functions enable compliance and process safety at all times
Low capital investment – cost-effectiveness increases with the pipe diameter (up to DN 4000/160")

동영상

How FlowDC function reduces inlet runs to a minimum
Straightforward application of FlowDC in practice
Reliable operation even at high temperatures
The ultrasonic flow measuring principle

Heartbeat Technology 기반 스마트 계측 시스템

진단, 검증 및 모니터링 기능으로 구성된 하트비트 기술은 안정적이고 심층적인 센서 및 공정 인사이트를 제공함으로써 스마트 계기를 더욱 스마트하게 활용할 수 있게 해줍니다.
