사양 정보
Process temperature
-20°C ... +230°C
Process pressure / max. overpressure limit
0.8 ... 3 bar abs.
Max. measurement distance
Main wetted parts
Aluminium, Steel, Stainless steel
적용 분야

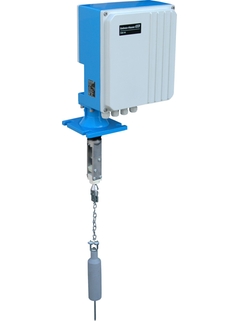

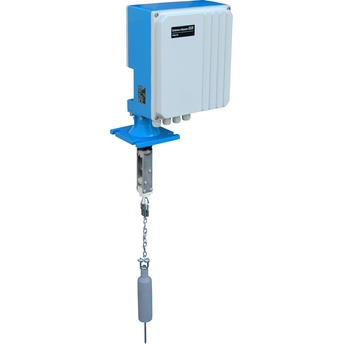

Silopilot FMM50 is an electromechanical level system. Depending on the sensing weight, the level can be measured in bins or silos with dusty, fine-grained or coarse-grained bulk solids or in tanks with liquids.
For level measurement in bunkers or silos for dusty, fine or coarse-grained bulk products, or in tanks containing liquids.
Process connection: Flange
Temperature: -40 to +230°C (-40 to +446°F)
Pressure: 0.8 to 3bar (11.6 to 43.5psi)
Measuring range: 70m (230ft)
Accuracy: ±5cm (1.97")
International explosion protection certificates
장점
High reliability level measurement of powdery, fine-grained or coarse-grained bulk solids
Safe measurements in extremely dusty environments
Fully electronic digital minimum fail-safe control, therefore no running down of the sensor weight into the silo outlet and no risk to the conveying systems
Quick menu-guided local operation using a 4-line text display
High performance three-phase engine (traction power up to 500N) using a single-phase supply voltage by employment of a converter, therefore simple electric supply
Optional design with certification for application in areas subject to dust explosion hazard zones 20, 21 and 22 (measuring zone) or zones 21 and 22 (device zone), category 1/2D
©Endress+Hauser
FLEX 선택
기술적 우수성
단순성
Fundamental 선택
기본적인 측정 요구사항 충족
기술적 우수성
단순성
기술적 우수성
단순성
Extended 선택
혁신적인 기술로 프로세스 최적화
기술적 우수성
단순성
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
기술적 우수성
단순성
Loading alternative products
Characteristic / Application
Not affected by characteristics of solid medium
Specialities
Switch to indicate need of maintenance (predictive maintenance)
Ambient temperature
-40°C ... +70°C
Process temperature
-20°C ... +230°C
Process pressure / max. overpressure limit
0.8 ... 3 bar abs.
Main wetted parts
Aluminium, Steel, Stainless steel
Max. measurement distance
최다 다운로드
KA Silopilot FMM50
전자 기계 레벨 시스템
EN
KO
BG CS DA DE EL ES ET FI HR HU ID LT LV NL NO PL RO SK SL SV TH TR
03/05/2023
언어:
한국어
버전:
03/05/2023
파일 크기:
1.5 MB
파일 이름:
KA01648FKO_0123-00.pdf
TI Silopilot FMM50
Electromechanical level system
EN
KO
DE ES FR JA PL RU
02/05/2023
22/08/2017
01/08/2012
07/07/2010
14/01/2008
언어:
영어
버전:
02/05/2023
파일 크기:
1.4 MB
파일 이름:
TI00395FEN_1523-00.pdf
12 설명서
Electromechanical level system
EN
KO
독일어 스페인어 French 일본어 폴란드어 러시아어
02/05/2023
22/08/2017
01/08/2012
07/07/2010
14/01/2008
언어:
영어
버전:
02/05/2023
파일 크기:
1.4 MB
파일 이름:
TI00395FEN_1523-00.pdf
Electromechanical level system
EN
KO
체코어 독일어 스페인어 French 일본어 폴란드어 러시아어
02/05/2023
12/09/2018
22/08/2017
01/08/2012
07/07/2010
언어:
영어
버전:
02/05/2023
파일 크기:
3.1 MB
파일 이름:
BA00286FEN_1623-00.pdf
EN
KO
불가리아어 체코어 덴마크어 독일어 그리스어 스페인어 에스토니아어 핀란드어 크로아티아어 헝가리어 인도네시아어 Lithuanian Latvian 네덜란드어 노르웨이어 폴란드어 루마니아어 슬로바키아어 슬로베니아어 스웨덴어 태국어 터키어
03/05/2023
언어:
한국어
버전:
03/05/2023
파일 크기:
1.5 MB
파일 이름:
KA01648FKO_0123-00.pdf
XA Silopilot T FMM20
XA Silopilot M FMM50
Approval No.: BVS 05 ATEX E 049
EN
KO
독일어 French
07/12/2017
04/08/2017
01/09/2011
14/01/2008
언어:
영어
버전:
07/12/2017
파일 크기:
1.2 MB
파일 이름:
XA00425FA3_16.17.pdf
Product overview for applications in liquids and bulk solids
언어:
영어
버전:
14/10/2022
파일 크기:
10.5 MB
파일 이름:
FA00001F00EN2522.pdf
Catálogo Medición y Detección de nivel
Gama de productos para aplicaciones con líquidos y sólidos
언어:
스페인어
버전:
01/06/2022
파일 크기:
7.2 MB
파일 이름:
FA00001Fes Catalogo Nivel_24.22.pdf
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern
언어:
독일어
버전:
14/10/2022
파일 크기:
10.6 MB
파일 이름:
FA00001F00DE2522.pdf
Misura di livello
언어:
이탈리아어
버전:
03/03/2023
파일 크기:
46.9 MB
파일 이름:
FA00001F00IT2522.pdf
Selection Guide
Continuous level measurement in liquids and bulk solids
Selection and engineering guide for the process industry
언어:
영어
버전:
18/10/2022
파일 크기:
18.3 MB
파일 이름:
CP00023F00EN1922.pdf
Product family: Silopilot M, Silopilot T
Product root: FMM20-, FMM50-
EN
KO
독일어 French
31/08/2022
언어:
영어
버전:
31/08/2022
파일 크기:
1002.8 KB
파일 이름:
EU_01079_01.22.pdf
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
Tape reel 25m, steel, FMM50
Tape reel 35m, steel, FMM50
Tape reel 50m, steel, FMM50
Tape reel 70m, steel, FMM50
Measuring tape 25m, FMM50
Measuring tape 35m, FMM50
Measuring tape 50m, FMM50
Measuring tape 70m, FMM50
Tape reel 25m, 316Ti, FMM50
Tape reel 35m, 316Ti, FMM50
Tape reel 50m, 316Ti, FMM50
Tape reel 70m, 316Ti, FMM50
Measuring tape 15m, FMM50
Tape reel steel, tape plastic, 15m
Tape reel 316TI, tape plastic, 15m
Wiper 230mm 70oC Alu FMM50
Wiper 230mm 70oC SS FMM50
Wiper 230mm 150oC Alu FMM50
Wiper 230mm 150oC SS FMM50
Wiper 500mm 70oC Alu FMM50
Wiper 500mm 70oC SS FMM50
Wiper 500mm 150oC Alu FMM50
Wiper 500mm 150oC SS FMM50
Wiper 1000mm 70oC Alu FMM50
Wiper 1000mm 70oC SS FMM50
Wiper 1000mm 150oC Alu FMM50
Wiper 1000mm 150/230oC SS FMM50
Sparepart-Kit, Wiper 70oC FMM20/FMM50
Sparepart-Kit, Wiper 150/230oC FMM20/50
Measuring tape 90m, FMM50
Mount.kit weight, tape, steel, FMM20/50
Mount.kit weight, tape, SS, FMM20/50
Weight stainl.steel, FMM50
Weight steel + umbrella, FMM50
Weight SS + umbrella, FMM50
Weight skeleton stainl.steel, FMM50
Weight bell stainl.steel, FMM50
Revolving shackle, steel FMM20/FMM50
Revolving shackle, SS FMM20/FMM50
Sensing weight oval float, 316Ti, FMM50
Sens.weight stainl.steel cage,FMM50, 3.1
Sens.weight oval float 316Ti, FMM50, 3.1
Sens. weight bell stainl.steel,FMM50,3.1
Sens.weight stainl.steel+umbr.,FMM50,3.1
Sens. weight stainless steel, FMM50, 3.1
Spare part kit sensing weight
Gasket electr. compartment, FMM50
Gasket electr. compart., Ex, clima,FMM50
Kit tape guide dirt chamber FMM50
Gasket cover dirt chamber FMM50
Kit slack tape switch FMM50
Kit cable gland M25, FMM50 Ex
Kit cable gland M25, FMM50
Cover elec., uncoat. FMM50
Cover elec., coated FMM50
Cover elec., uncoat. FMM50 Ex
Cover elec., coated FMM50 Ex
Cover elec., uncoat. + gage-glass FMM50
Cover elec., coated + gage-glass FMM50
Cover dirt chamber, uncoat. FMM50
Cover dirt chamber, coated FMM50
Cover dirt chamber, uncoat. 3barA FMM50
Cover dirt chamber, coated 3barA FMM50
Process adapter, uncoat. FMM50
Process adapter, coated FMM50
Shutter purge connection FMM20/FMM50
Elektronics cover plate, FMM50
Kit tape guide dirt chamber,resis.,FMM50
Cover elec., coated, resist., FMM50 Ex
Cover elec.,coated,resist.,glass, FMM50
Cover dirt chamber, coated,resist.,FMM50
Cover dirt chamber, resist., 3barA,FMM50
Electronics FMM50, 230V 2rel.
Electronics FMM50, 230V 6rel.
Electronics FMM50 Ex, 230V 2rel.
Electronics FMM50 Ex, 230V 6rel.
Electronics FMM50, 115V 2rel.
Electronics FMM50, 115V 6rel.
Electronics FMM50 Ex, 115V 2rel.
Electronics FMM50 Ex, 115V 6rel.
Electronics FMM50, 230V 2rel.+ heat.
Electronics FMM50, 230V 6rel.+ heat.
Electronics FMM50 Ex, 230V 2rel.+ heat.
Electronics FMM50 Ex, 230V 6rel.+ heat.
Electronics FMM50, 115V 2rel.+ heat.
Electronics FMM50, 115V 6rel.+ heat.
Electronics FMM50 Ex, 115V 2rel.+ heat.
Electronics FMM50 Ex, 115V 6rel.+ heat.
Electronics FMM50, 230V 2rel. clim.
Electronics FMM50, 230V 6rel. clim.
Electronics FMM50 Ex, 230V 2rel. clim.
Electronics FMM50 Ex, 230V 6rel. clim.
Electronics FMM50, 115V 2rel. clim.
Electronics FMM50, 115V 6rel. clim.
Electronics FMM50 Ex, 115V 2rel. clim.
Electronics FMM50 Ex, 115V 6rel. clim.
Electronic cover plate, FMM50, clim.
Elect. FMM50, 230V 2rel. clim.+heat.
Elect. FMM50, 230V 6rel. clim.+heat.
Elect. FMM50 Ex, 230V 2rel. clim.+heat.
Elect. FMM50 Ex, 230V 6rel. clim.+heat.
Elect. FMM50, 115V 2rel. clim.+heat.
Elect. FMM50, 115V 6rel. clim.+heat.
Elect. FMM50 Ex, 115V 2rel. clim.+heat.
Elect. FMM50 Ex, 115V 6rel. clim.+heat.
Device heater FMM50, 115/230VAC
Start button FMM50, external
Geared motor 230VAC 500N FMM50
Geared motor 230VAC 250N FMM50
Geared motor 115VAC 500N FMM50
Geared motor 115VAC 250N FMM50
Geared motor 230VAC 500N FMM50 clim.
Geared motor 230VAC 250N FMM50 clim.
Geared motor 115VAC 500N FMM50 clim.
Geared motor 115VAC 250N FMM50 clim.
Tape-stopper tool, motor exchange
Strip-off tool, motor + tape exchange
Bellows max 70oC, FMM20/FMM50
Bellows max 150/230oC, FMM20/FMM50
Wiper plate tape, bronce 2pc.FMM20/FMM50
Guide block tape, bronze FMM20/FMM50
Fixing kit protection cover FMM50
PC board FMM50, Processor + Display
PC board FMM50, 230V motor control unit
PC board FMM50, 115V motor control unit
PC board FMM50, 230V 2rel.
PC board FMM50, 230V 6rel.
PC board FMM50 Ex, 230V 2rel.
PC board FMM50 Ex, 230V 6rel.
PC board FMM50, 115V 2rel.
PC board FMM50, 115V 6rel.
PC board FMM50 Ex, 115V 2rel.
PC board FMM50 Ex, 115V 6rel.
PC board FMM50, 230V 2rel.+ heat.
PC board FMM50, 230V 6rel.+ heat.
PC board FMM50 Ex, 230V 2rel.+ heat.
PC board FMM50, 115V 2rel.+ heat.
PC board FMM50, 115V 6rel.+ heat.
PC board FMM50 Ex, 115V 2rel.+ heat.
PC board FMM50 Ex, 115V 6rel.+ heat.
PC board FMM50, end position
PC board FMM50, counting wheel
PC board FMM50 Ex, 230V 6rel.+ heat.
PC board, processor, display, clim.
PC board FMM50,230V M-control unit clim.
PC board FMM50,115V M-control unit clim.
PC board FMM50, 230V 2rel. clim.
PC board FMM50, 230V 6rel. clim.
PC board FMM50 Ex, 230V 2rel. clim.
PC board FMM50 Ex, 230V 6rel. clim.
PC board FMM50, 115V 2rel. clim.
PC board FMM50, 115V 6rel. clim.
PC board FMM50 Ex, 115V 2rel. clim.
PC board FMM50 Ex, 115V 6rel. clim.
PC board FMM50, end position, clim.
PC board FMM50, counting wheel, clim.
PC board FMM50, 230V 2rel. clim.+heat.
PC board FMM50, 230V 6rel. clim.+heat.
PC board FMM50 Ex 230V 2rel. clim.+heat.
PC board FMM50 Ex 230V 6rel. clim.+heat.
PC board FMM50, 115V 2rel. clim.+heat.
PC board FMM50, 115V 6rel. clim.+heat.
PC board FMM50 Ex 115V 2rel. clim.+heat.
PC board FMM50 Ex 115V 6rel. clim.+heat.
Extension 230oC, stainl.steel FMM50
Adapter flange 6" 150lbs 316TI
Adapter flange 6" 150lbs Steel
Adapter flange 8" 150lbs 316TI
Adapter flange 8" 150lbs Steel
Adapter flange DN150 PN16 316TI
Adapter flange DN150 PN16 Steel
Adapter flange DN200 PN16 316TI
Adapter flange DN200 PN16 Steel
Adapter flange DN100 PN25/40 316TI
Adapter flange DN100 PN25/40 Steel
Adapter flange 4" 300lbs 316TI
Adapter flange 4" 300lbs Steel
Adapter flange 4" 600lbs 316TI
Adapter flange 4" 600lbs Steel
Process adapter DN50 PN16 316TI
Process adapter DN50 PN16 Steel
Process adapter DN65 PN16 316TI
Process adapter DN65 PN16 Steel
Process adapter DN80 PN16 316TI
Process adapter DN80 PN16 Steel
Process adapter 2" 150lbs 316TI
Process adapter 2" 150lbs Steel
Process adapter 3" 150lbs 316TI
Process adapter 3" 150lbs Steel
Process adapter 4" 150lbs 316TI
Process adapter 4" 150lbs Steel
Process adapter 150lbs RF 4" Alu
Process adapter 150lbs RF 4" Alu coated
Process adapter water spray cleaning
Sensing weight separ. layer HD SS
Sensing weight separ. layer HD SS+PES
Sensing weight separ. layer LD SS
Sensing weight separ. layer LD SS+PES
Protection cover FMM50, 304
여러분의 개인 정보는 소중합니다
당사는 쿠키를 사용해 사용자의 브라우징 경험을 개선하고, 통계를 수집하여 사이트 기능을 최적화하고, 맞춤형 광고 또는 콘텐츠를 제공합니다.
"모두 허용"을 선택하면 쿠키 사용에 동의하는 것으로 간주됩니다. 쿠키 정책 을 참조하시기 바랍니다.
사용자 정의
중요한 것만 허용
모두 허용
