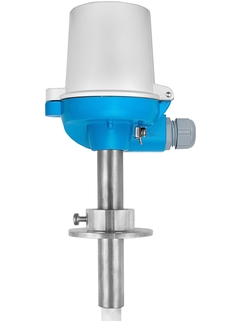

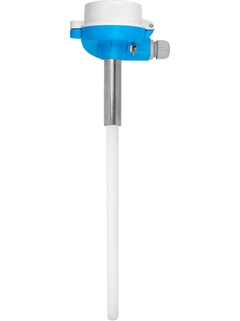

iTHERM FlameLine TAF11
High temperature thermometer

사양 정보

• Accuracy

  class 2 acc. to IEC 60584

• Max. process pressure (static)

  at 20 °C: 1 bar (15 psi)

• Operating temperature range

  Type K:
  -40 °C ...1.300 °C
  (-40 °F ...2.372 °F)
  Type J:
  -40 °C ...750 °C
  (-40 °F ...1.382 °F)
  Type N:
  -40 °C ...1.150 °C
  (-40 °F ...2102 °F)
  Type S:
  0 °C ...1.600 °C
  (32 °F ...2.912 °F)
  Type R:
  0 °C ...1.600 °C
  (32 °F ...2.912 °F)
  Type B:
  600 °C ...1.600 °C
  (1.112 °F ...2.912 °F)

• Max. immersion length on request

  up to 4.000,00 mm (157,48'')
