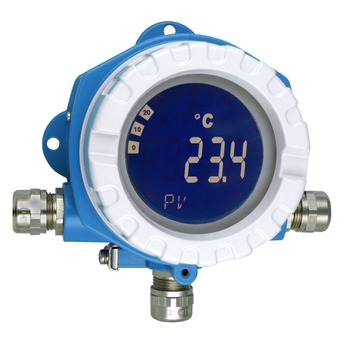

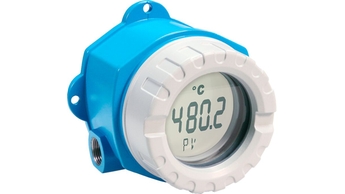

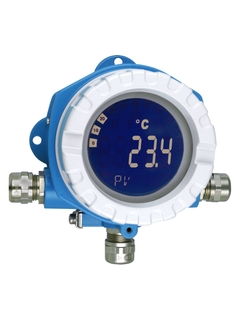

iTEMP TMT142
Temperature field transmitter

Transformation of sensor signals into stable and standardized output signals for all industries

  • ©Endress+Hauser

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from RTD sensors and thermocouples, but also resistance and voltage signals using HART® communication. It visualizes the signals on its own backlit display. A rugged field housing allows a direct connection in the process areas. Moreover, a swift and easy operation and maintenance can be realized by PC using operating software.

장점

  • Illuminated display, rotatable

  • Operation, visualisation and maintenance with PC, e.g. using FieldCare operating software

  • Sensor monitoring: Failure conditioning, corrosion detection to NAMUR NE 89 and in event of sensor break or sensor short-circuit, NAMUR NE 43 compliant

  • Optional stainless steel housing for EEx d applications

  • Approvals: ATEX (EEx ia, EEx d and dust ignition-proof), FM and CSA (IS, NI, XP and DIP)

  • Galvanic isolation

  • Min./max. process value recorded

적용 분야

  • Temperature field transmitter with HART® protocol for converting various input signals to a scalable 4...20 mA analog output signal

  • Universal input usable for: Resistance thermometer (RTD), thermocouples (TC), resistance transmitter (Ω) and voltage transmitter (mV)

  • HART® protocol for operating the device on site using handheld terminal (DXR375) or remotely via the PC

  • Optional stainless steel housing for EEx d applications
