iTHERM TMS21 MultiSens Multipoint

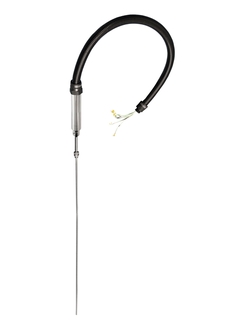

iTHERM MultiSens Slim TMS21 Multipoint TC thermometer

Low invasive bendable TC multipoint thermometer for petrochemical and chemical applications

TMS21
Please Wait (spinning wheel)
가격 로드 중
일시적으로 가격을 로드할 수 없습니다.
Price on request
가격 활성화 중
가격: 정보 제공
from CHF ??.-

이 제품은 해당 국가에서 판매되지 않는 제품입니다.

사양 정보

  • Accuracy

    class 2 acc. to IEC 60584
    ASTM E230 and ANSI MC 96.1

  • Response time

    t50 = 3 s
    t90 = 9 s

  • Max. process pressure (static)

    at 20 °C: 90 bar (1305 psi)

  • Operating temperature range

    Type K:
    max. 920 °C
    (max. 1.688 °F)
    Type J:
    max. 440 °C
    (max. 824 °F)
    Type N:
    max. 920 °C
    (max. 1.688 °F)
    Type E:
    max. 510 °C
    (max. 950 °F)

  • Max. immersion length on request

    up to 13.000,00 mm (511,81'')

적용 분야

Specially designed for applications where small size of the probe and light weight are crucial. The TMS21 can be highly customized due to its versatility. It can monitor the temperature on a very high number of points along a line just by using one process connection. It is composed of several low diameters thermocouples protected by one overall primary tube thermowell. Two different product configurations are available, with or without flexible upper thermowell-hose (for axial centering).

  • Light Chemical processes

장점

  • High number of measuring points in a small diameter

  • Low invasiveness temperature profiling probe

  • Easy mounting and cabling
