Deltapilot S DB50L

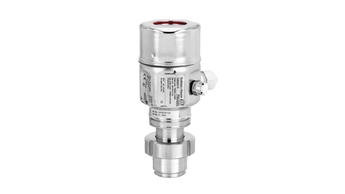

Product picture of: Deltapilot S DB50L

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

Details

  • 측정 원리

    Hydrostatic

  • Characteristic

    Pressure transmitter, gauge for hydrostatic level measurement, flush mounted CONTITE-sensor with metallic measuring diaphragm Alloy C4 hermetically welded + safe humidity protection
    Compact version
    Hygienic design

  • Supply voltage

    3-wire analogue:
    15...20V DC
    2-wire PFM-Signal:
    14...16V DC
    4...20mA HART:
    11,5...30V DC
    PROFIBUS PA:
    9...24V DC
    Ex ia: 9...32V DC
    FOUNDATION Fieldbus:
    9...32V DC

  • Reference Accuracy

    0,2%
    optional 0,1%

  • Long term stability

    0,1% of URL/6 months

  • Process temperature

    -10°C...100°C

  • Ambient temperature

    -40°C...85°C

  • Measuring cell

    100mbar...10bar

  • Max. Turn down

    max. 10:1

  • Max. overpressure limit

    25bar

  • Process connection

    Universal process mounting adapter
    Hygienic connections
    Tri-Clamp ISO2852

  • Communication

    3-wire analogue
    2-wire PFM
    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX
    CSA
    WHG/overspill protection
    GL marine
    3A, EHEDG

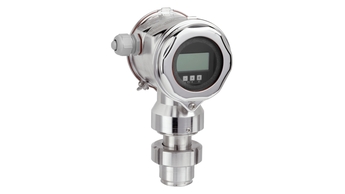

  • Successor

    FMB70

  • 측정 원리

    Hydrostatic

  • Characteristic / Application

    Pressure transmitter, gauge for hydrostatic level measurement, flush mounted CONTITE-sensor with metallic measuring diaphragm Alloy C4 hermetically welded + safe humidity protection
    Compact version
    Hygienic design

  • Supply / Communication

    3-wire analogue:
    15...20V DC
    2-wire PFM-Signal:
    14...16V DC
    4...20mA HART:
    11,5...30V DC
    PROFIBUS PA:
    9...24V DC
    Ex ia: 9...32V DC
    FOUNDATION Fieldbus:
    9...32V DC

  • Accuracy

    0,2%
    optional 0,1%

  • Long term stability

    0,1% of URL/6 months

  • Ambient temperature

    -40°C...85°C

  • Process temperature

    -10°C...100°C

  • Process pressure absolute / max. overpressure limit

    25bar

  • Pressure measuring range

    100mbar...10bar

  • Main wetted parts

    Alloy C
    316L

  • Process connection

    Universal process mounting adapter
    Tri-Clamp ISO2852
    Hygienic connections

  • Max. measurement distance

    100m H2O

  • Communication

    3-wire analogue
    2-wire PFM
    4 ... 20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX
    CSA
    WHG/overspill protection
    GL marine
    EHEDG, 3A

  • Options

    digital display
    SS-, Aluminium- or Polyesterhousing

  • Successor

    FMB70

  • Application limits

    Changing density
