Oil leak detector
Float Sensor NAR300

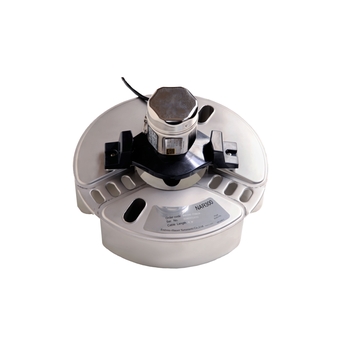

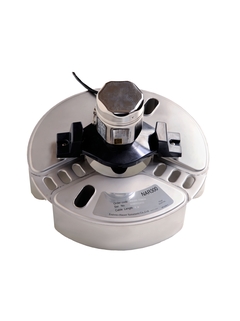

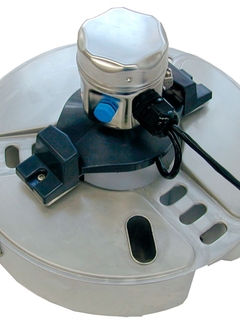

Oil leak detector - Float Sensor NAR300 ©Endress+Hauser

Leak detection of petrochemicals, vegetable oils, etc.

Installed in a drainage sump pit near a tank- or pump-yard, etc., the NAR300 system provides excellent leak detection of petrochemicals, vegetable oils, etc. Vibronics and conductive technologies are combined with a 2-level logic for simple, safe and highly reliable output for leak monitoring.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Two independent sensors are combined for accurate liquid leak detection

    • A conductive probe detects water or non-water liquid

    • A vibronic tuning fork confirms oil or air

    • No moving parts, long-life, reduces maintenance costs

    • Alarms outputs if cable fails, or...

  • 적용 분야

    Ambient temperature: -20 to +60°C (-4 to +140°F)
