사양 정보
-
Accuracy
(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F
적용 분야

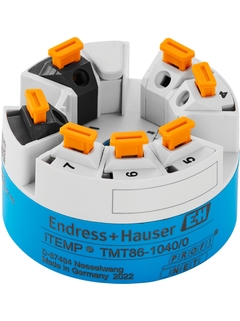

The iTEMP TMT86 is a reliable, intelligent and future proof dual-channel Ethernet-APL PROFINET temperature head transmitter for thermometers with terminal head form B and is suitable for use in hazardous areas. Beneficial diagnostic functions like corrosion monitoring of the sensor wires help to improve the plant up-time. The embedded webserver and the up-to-date FDI package simplifies the device configuration and integration.
Ethernet-APL: 2-wire Ethernet IEEE 802.3cg 10BASE-T1L
Temperature measurement with two independent universal inputs (RTD, Ω, TC, mV)
System integration with PROFINET®
Installation in terminal head form B (flat face) as per DIN EN 50446
Optional: installation in field housing for Ex d applications
Reliability, long-term stability, high precision and advanced diagnostic function in critical processes
장점
Digital communication down to the field level, even in explosive atmospheres
Easy and standardized system integration via PROFINET® Profile 4
Integrated web server offers simplicity during commissioning and maintenance
High accuracy of measuring point through sensor-transmitter matching
Reliable operation with sensor monitoring and device hardware fault recognition
Fast and tool-free wiring thanks to push-in terminal technology, optional
Attachable measured value display, optional
