Radar measurement

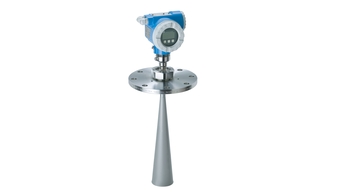

Micropilot FMR533

Micropilot FMR533 ©Endress+Hauser

Time-of-Flight measuring principle

For custody transfer applications and excellently suited for free space applications up to 40m

Micropilot FMR533 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR533 radar with parabolic antenna is excellently suited for free space applications up to 40m (131ft). Micropilot FMR533 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

  • 장점

    • 0.5mm accuracy (2σ value)

    • National approvals (NMi, PTB) for custody transfer

    • Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590

    • Easy on-site operation via menu-driven alphanumeric display

    • Easy...

  • 적용 분야

    With parabolic antenna excellently suited for free space applications up to 40m (131ft).

    • Process connection: Flange

    • Temperature: -40 to +200°C (-40 to +392°F)

    • Pressure: Vacuum to +16bar (Vacuum to +232psi)

    • Maximum measuring range: 40m (131ft)

    • Accuracy:...

특징 및 사양

뒤로

Details

  • 측정 원리

    Level radar

  • Characteristic / Application

  • Supply / Communication

    4-wire (HART)

  • Frequency

    C-band (~6 GHz)

  • Accuracy

    +/- 1 mm, custody transfer

  • Ambient temperature

    Standard:
    -40 °C ... 80 °C
    (-40 °F ... 176 °F)
    For calibration to regulatory standards:
    -25 °C ... 60 °C
    (-13 °F ... 131 °F)

  • Process temperature

    -40 °C ... 200 °C
    (-40 °F ... 392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 16 bar
    (Vacuum ... 232 psi)

  • Main wetted parts

    316L + PTFE

  • Process connection

    DN150 ... DN250 / 6" ... 10"

  • Max. measurement distance

  • Radar_Mediengruppe_en.jpg
  • Communication

    4 ... 20 mA HART

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI

  • Safety approvals

    Overfill prevention WHG

  • Application limits
